Changes are available in 2024.2

Automatic Property Sets

Signs, Foundations and Markings can now automatically get Property Set applied. Property sets are automatically filled in from the attributes on the sign and sign holder. The user can set if Property Sets should be added to 2D and/or 3D-objects.

Pay Items

Signs, Foundations and Markings can now automatically get Pay Item applied. The value applied can be stored in this setting comes from the template.

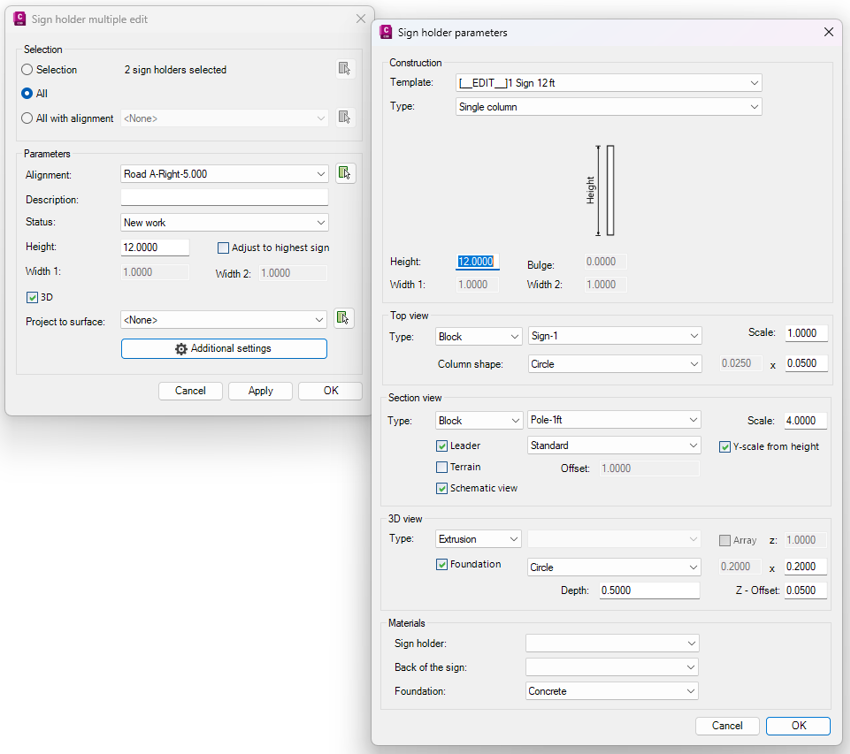

Edit Multiple Sign Holders

Use this command that edit Alignment, Scale and Status etc for multiple sign holders at once.

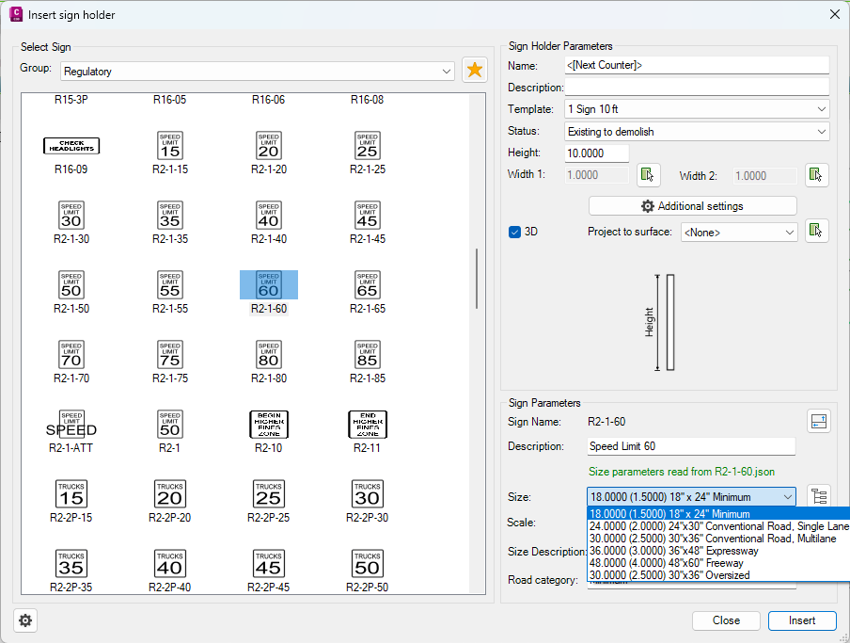

Sign Sizes

each sign now has an individual size dropdown. The size includes a Road Category which when selected is then remember for the next sign. Sign Sizes can be displayed in either inch/mm or feet/meter.

Sign Table

the sizes for the signs can be displayed in either inch/mm or feet/meter.

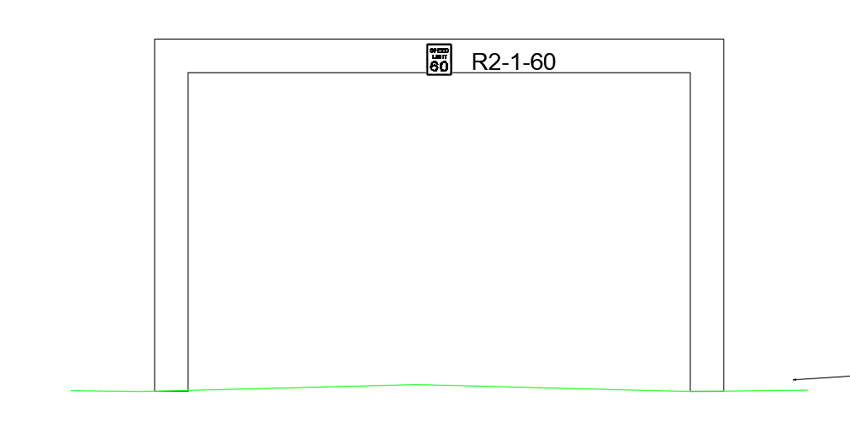

Surface in Section

The section view of the sign holder can now include a section of the reference surface.

New Automatic Attributes

X/Y/Z, Offset, Elevation Top and Bottom, Clearance, Created and Edit Date and Group has been added as possible automatic attributes.

Markings Layers

All markings now have individual layers for each part of the marking.

Check Sign Elevation

The workflow and composition of the dialog has been updated.

Portals

Section view of portal can now display different lengths of the legs to reflect the actual length position on the surface.

Fixes

• Fixed an issue where the distance between the attributes were multiplied by the sign scale.
• 3Dsigns are now a group instead of a solid block.
• Clearance arrow is now displayed in the Section view for each sign holder when Sign Holder Manager is active.
