Changes is available in version 2022.1.2

Please note that Naviate Structure only can be downloaded from the download page manually, you will not receive a notification on Update Manager for version 2022.1.2. We apologise for the inconvenience. See this page for instructions.

Important! Do not update to Naviate Structure 2022 if you use Rebar Numbering in a workshared project. We have solved this issue already and we will deliver the fix in the next update. Next update is to be released in December 2021. Read more about the details here.

Rebar Numbering Norway and UK

Custom created (nonstandard) shape codes are sorted in RN and exported to Excel with picture.

All rebars positions with custom created (nonstandard) shape codes have corresponding picture/sketch with all dimensions specified when exporting from Rebar Numbering to Excel.

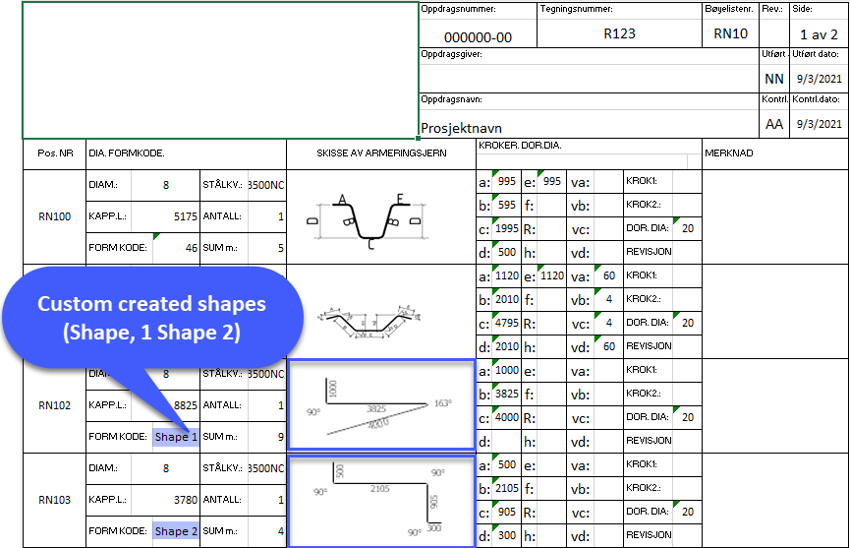

Export to Excel for NO standard, all shape codes that are not specified in standard are considered as nonstandard shape codes and have pictures in Excel export:

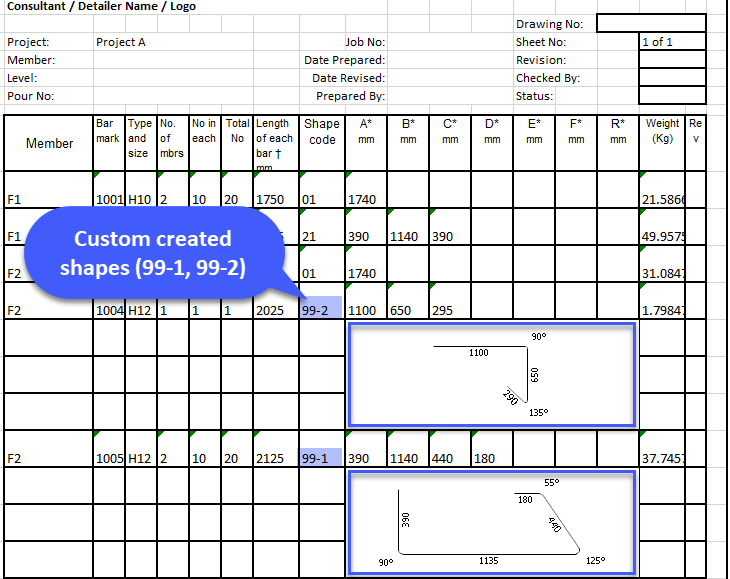

Export to Excel for UK standard, nonstandard shape codes have an assigned prefix with the number “99” and includes export of corresponding images:

Rebar Numbering UK

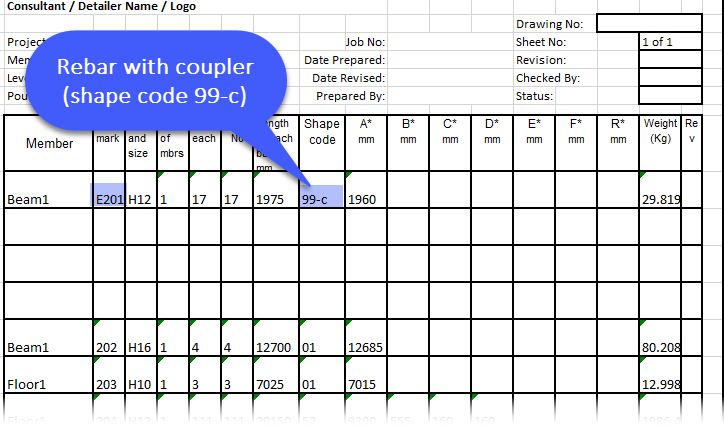

Rebars with couplers are sorted in RN and exported to Excel with rows reserved for a picture of coupler type.

Rebars with mechanical coupler on one or both ends are also considered as nonstandard shape codes (99s shape codes), they are numbered in Rebar Numbering with prefix E and exported to Excel. In Export to Excel below the rebar with coupler, empty rows are reserved for adding images of a specific coupler type.

Configure Reinforcement

Customize look and size of the pictures for a nonstandard rebar shapes in Excel report.

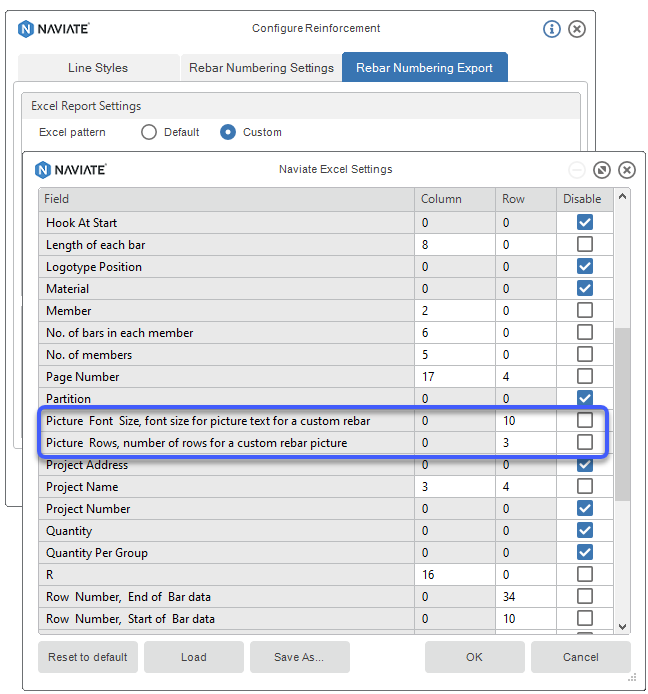

In Configure Reinforcement/Rebar Numbering Export you can choose Custom Excel pattern and set the size of the pictures (number of rows) and font size of dimensions (text) on picture for a nonstandard rebar shape that are going to be shown in Excel report:

Pile Numbering

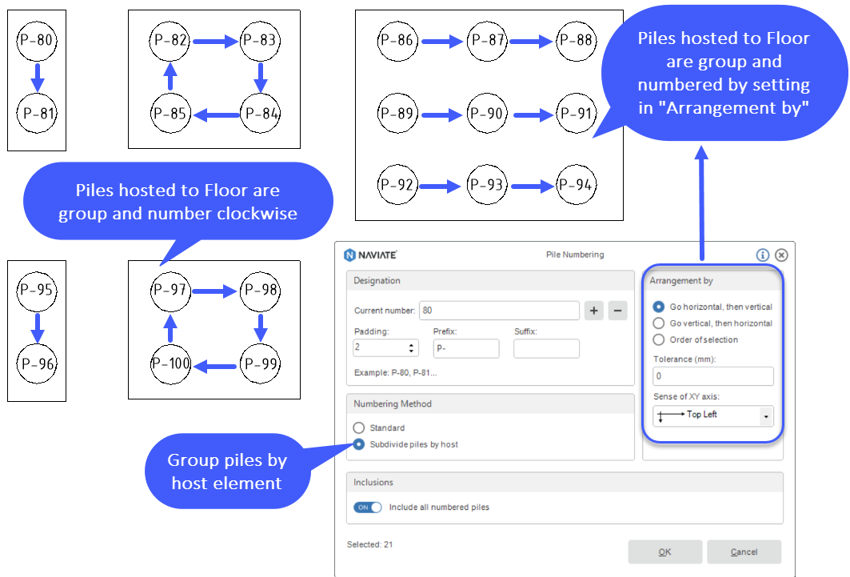

You can now number hosted piles with subdivided by host method and have more accurate numbering of all piles in your project.

We have extended and improved the numbering of piles by allowing you to number nested, hosted, and single piles using standard or subdivide by host method. We have made the following changes:

• Provided possibility to define padding
• Rename “Subdivide” method to “Subdivided piles by host”
• Removed option for numbering piles that are in group, instead piles in group are numbered by default
• Subdivided piles by host method number only piles (not pile caps)
• Numbering with subdivided method is done in clockwise if it possible, otherwise settings in “Arrangement by” are used (order and sense of XY axis)
• Added possibility to number piles hosted to structural element with subdivided by host method (group the piles by the hosting element)
• Added support for NV parameters on Pile families

Bug fixes

We have fixed the following issues:

• Rebar Numbering (UK version): Fixed issue with numbering new rebar that is created by editing the existing rebar
• Rebar Numbering (NO version): Removed “varying” for “a” parameter in varying rebar set created with shape code LM
• Rebar Numbering (NO version): Fixed issue when in Schedule Number (Böjelistenummer) was missing Prefix from Rebar Numbering (Pos NR.
• Pile Extend/Trim: Fixed issue when function was not working for some 3D views in work-share project
• Top/Near and Bottom/Far Symbols: Fixed issue when drawing Symbols in section that is far from the origin
• Bottom/Far Symbols: User is informed if there is no Line Styles selected for Override Button/Fat Line
