Changes is available in version 2022.1.4

Rebar Numbering workflow

Compare current data in Rebar Numbering with a saved Snapshot.

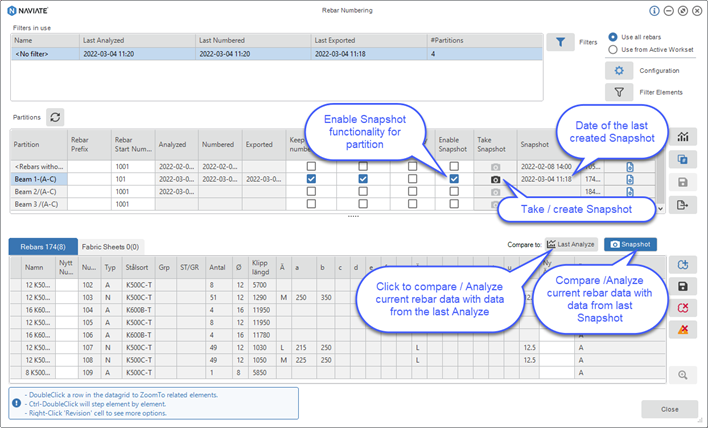

Now you can choose what to compare with when Analyzing a partition, the last Analyze or a saved Snapshot. Before, you were only able to compare current reinforcement data with last Analyze.

Once you have enabled Snapshots you are asked to save a Snapshot at Export; or you can take a Snapshot manually at any time. You can enable Snapshot functionality for each partition individually.

Date of the last created Snapshot is shown in Snapshot column and are updated when taking a new Snapshot for the partition.

Analyze button compares data to the last Analyze (revisions are disabled) until you click on “Compare to Snapshot”, then current data are compared to the saved Snapshot and revisions options are active.

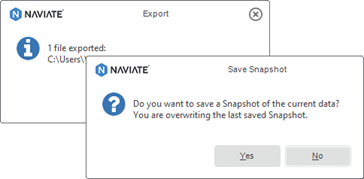

Each time you export a partition you will get a question to save a Snapshoot of the current/exported data if you have enabled Snapshots:

Note! Snapshot functionality is not implemented for Fabric Sheets.

Fixes

• Rebar Numbering: Free Form rebar with shape code "Varies" are excluded from the exports
