Changes is available in version 2022.1.2

Align Profile

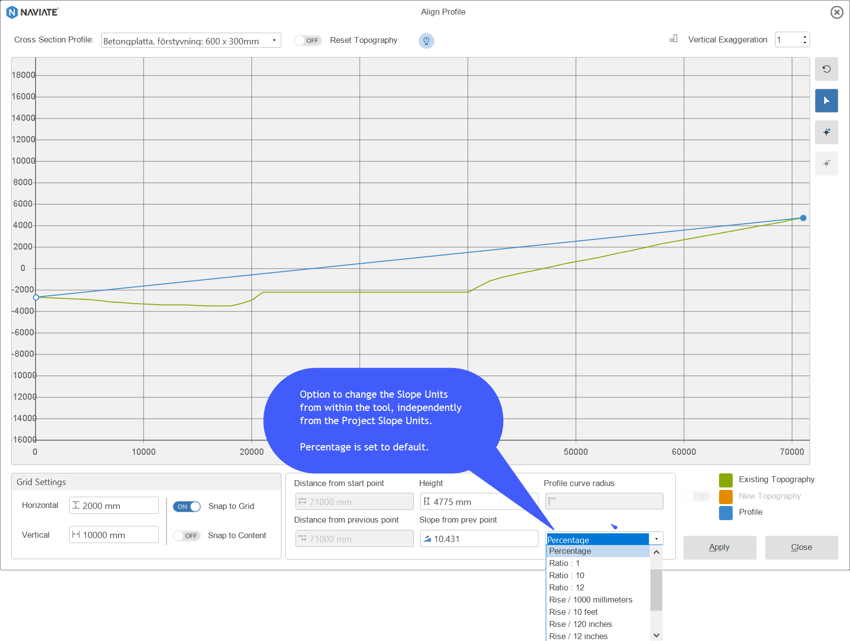

Independent Slope units

You can now change the Slope units in the UI independently from the Project Units.

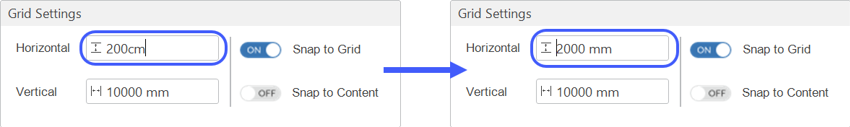

Convert unit value

Added possibility to convert any entered unit value to the units set to show.

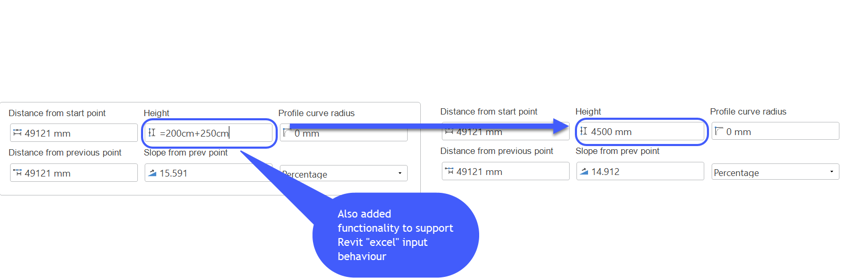

We have also added support for the Revit “Excel” input behaviour. Any calculated value will be summarised and converted to the defined Project Units.

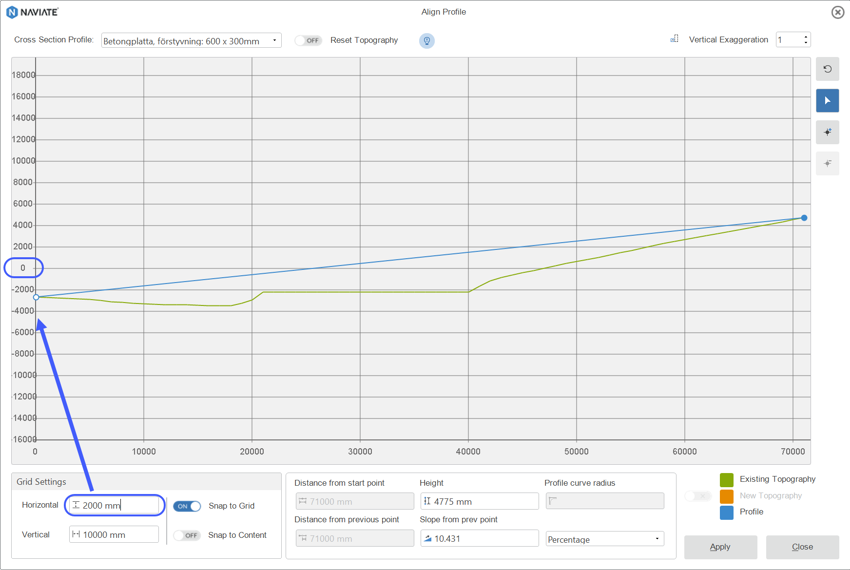

Aligned Horizontal Grid

We have aligned the Horizontal Gird to the base origin.

Now the horizontal grid will be aligned to the base origin (0,00 Sea Level Height) and the defined Grid settings.

See selected path

Added possibility to see the whole selected path of Lines in the Active view.

Before the tool start, after you have selected a Line in the View, the tool will automatically Zoom to Fit on the complete chain of connected Lines and show you what you have selected as a means of confirming if the selected chain of Lines is correct.

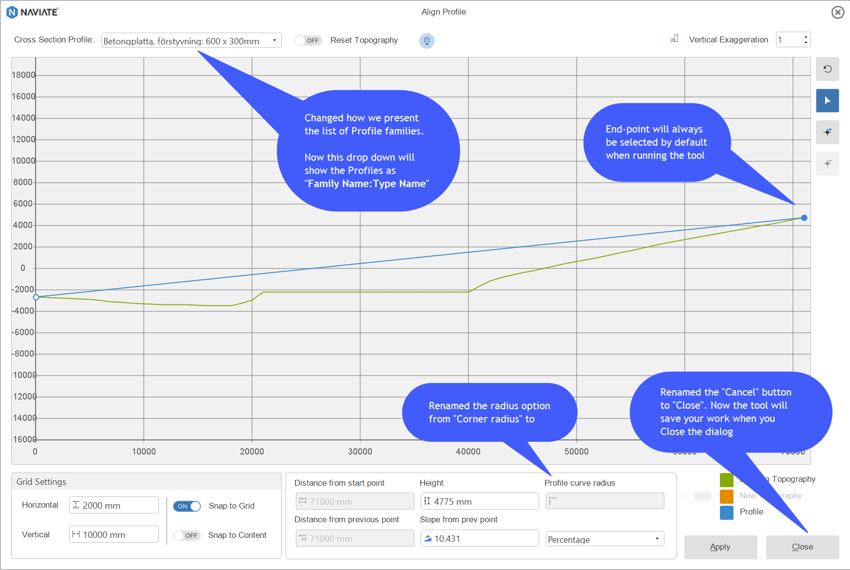

User Interface

Improved some UI/UX behaviours in the tool.

Bug fixes

We have fixed the following issues:

• Cut&Fill: Fixed issue when aligning Sub-region to an element
