Naviate Pipe 2024.2 release

11 December 2023

Updates in Naviate Pipe. Highlights include Modify Single Pipe, Offset in Structure and Modify Multiple Pipes.

Changes are available in 2024.2

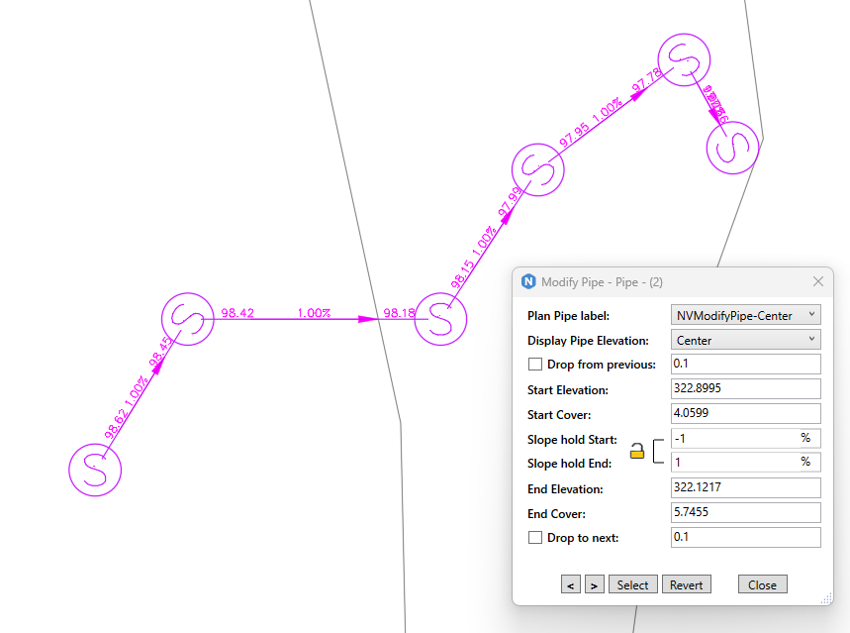

Modify Single Pipe

A new command to edit elevation, slope for a single pipe with the option to adjust connected pipes. The dialog can stay open while editing and with the arrow-buttons you can move to the next connected pipe. The Elevation box can handle addition and subtraction so you can both move a pipe end to an absolute elevation as well as a relative value.

Rename Pipes by Structure names

A new command that renames selected pipes or all pipes in a network by what structure the pipe is connected to. The pipes can get optional prefix, interfix or suffixes along with the structure names.

Offset in Structure

Now includes a Reset option. This can be used before a corridor is rebuilt to get a better result.

Modify Multiple Pipes

The command can now handle selection both upstream and downstream along the pipe span.

Fixes

  • Fixed an issue in Modify Multiple Pipes where Pick (Elevation) calculates wrong if the pipe is already below the point selected and Below is used as option again.
  • Fixed an issue where Modify Multiple Pipes calculation didn’t skip Null Structures
