Naviate Landscape

Changes are available in 2021.2 and 2019.22.

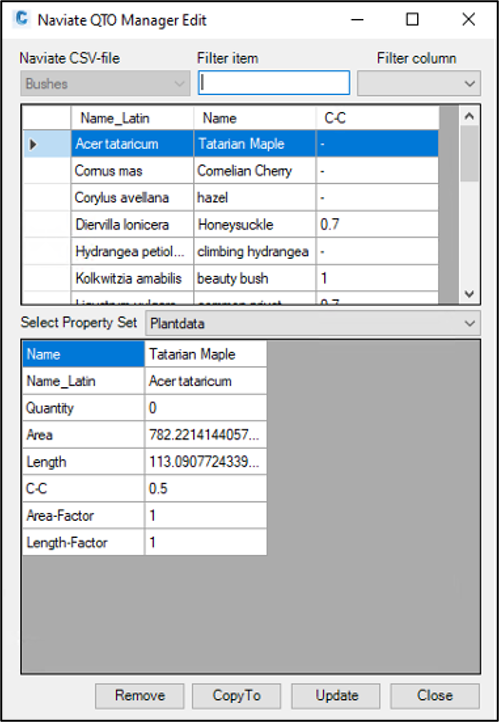

Edit Plant Data (NVQtoEdit)

Edits the property data on one or more objects. If objects had property data applied with Data Manager, then new information from the lists can be added.

The dialog also contains options to “Copy to” that copies the Properties to one or more objects.

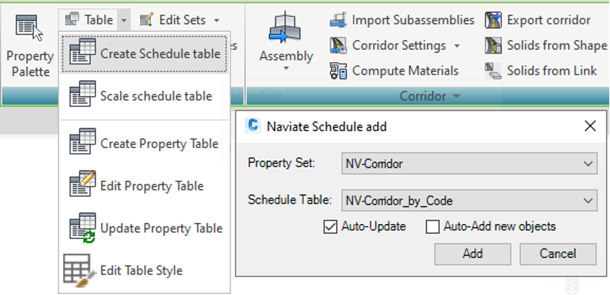

Create Schedule (NVScheduleAdd)

Adds a schedule with properties from property set to the drawing.

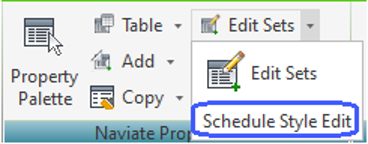

Edit Schedule Style

Standard AutoCAD command to edit Schedule Report Styles.

Dynamic Update (NVPropDynamic)

A new setting that determines if property set formulas should update automatically when the object changes. This setting is default on, use command NVPropDynamic to set it Off.

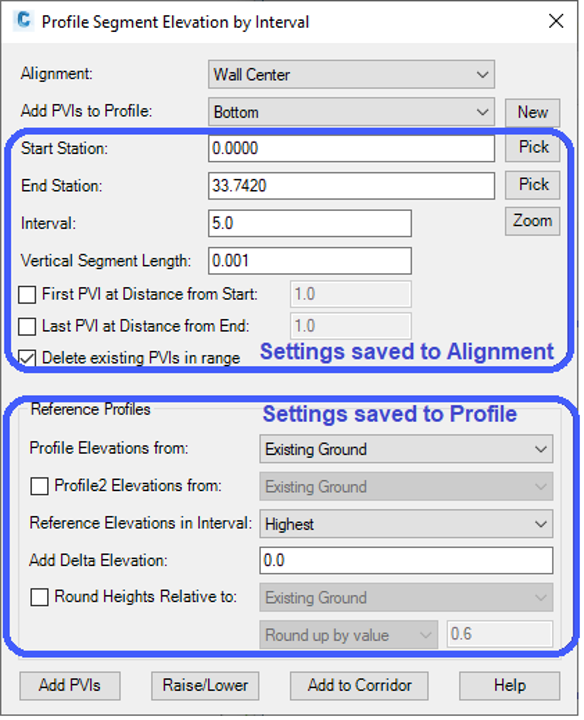

Stepped Profile

Now remembers the settings for Station and PVIs for selected Alignment and Reference profile settings for selected Profile.
