Changes are available in 2022.3, 2021.13, 2020.23 and 2019.33

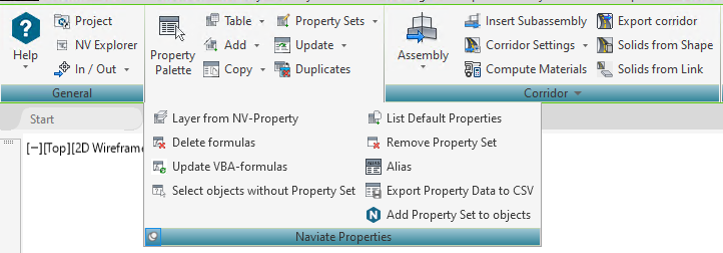

NVPropSetAutoADD

A new scriptable command that adds property set to objects.

NVPropsetDataToCSV

A new scriptable command to export property data to CSV.

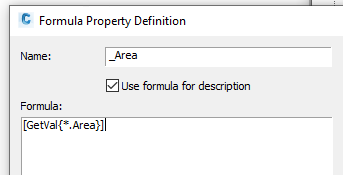

Property Set function GetVal

Now supports * instead of object type. For example use {GetVal[*.Name]} to get name for all objects the property set is placed on.

Dynamic Update of Naviate Property Data (NVPropUpdate)

The Dynamic Update now automatically excludes certain commands that have been noticed to cause issues, such as NVCorShapeToSolid. The commands are listed in an Exclusion-file that is stored under Program files.

The Dynamic Update only updates property sets placed on objects that are listed under Applies to in the Property Set. E.g. if a property set is moved from a Pipe to a Solid, the information remains static on the solid while it updates on the pipe.

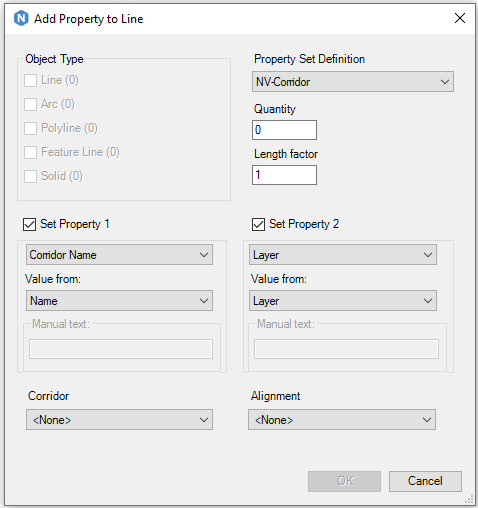

Add Properties to Lines (NVPropAddToLine)

Now supports selection of Property values to set for selected Property Set. Also now supports getting 2Dlength, Start/End station and Extrude-Profile-Name for solids created with Extrude along path.

Add Properties to Points (NVPropAddToPoint)

Now supports selection of Property values to set for selected Property Set.

Import Naviate Styles (NVImportStyles)

Fixed an issue where the command failed to find the Naviate template for certain languages.

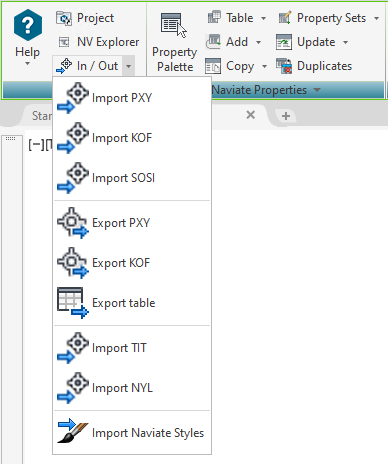

Import KOF/Sosi/TiT/Nyl

The commands were lost and have now been found – you can find them under In / Out on the Naviate-tab.

You can find the related release notes here

• Release notes for Naviate Road
• Release notes for Naviate Pipe
• Release notes for Naviate Landscape
• Release notes for Naviate Traffic
