Changes are available in 2022.2.

New! Duplicate Property Data

For scripting: NVPropDataDuplicate. Copies Property Data from e.g. a dynamic Property Set (which is already on the object) to a Non-Dynamic Property Set (which is added to the object) for selected objects.

New! Remove Propset

Removes Property Set from multiple objects or all objects.

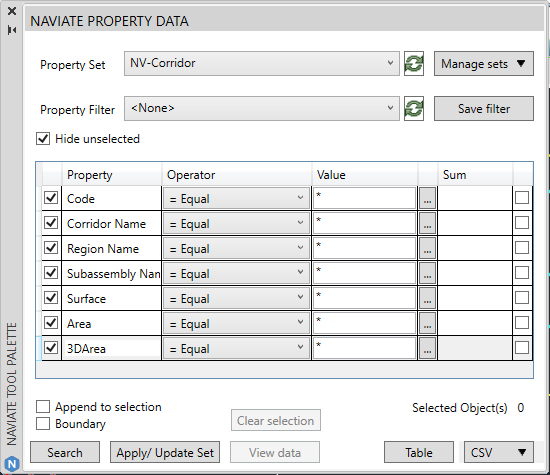

Property Palette

Can now view and export only the select properties.

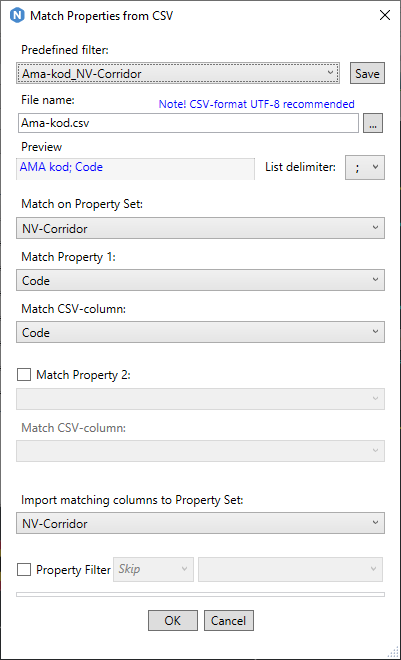

Match properties from CSV

Added the possibility to save a settings file that saves what CSV-file to use and what properties to match between. Also added the option to select a delimiter.

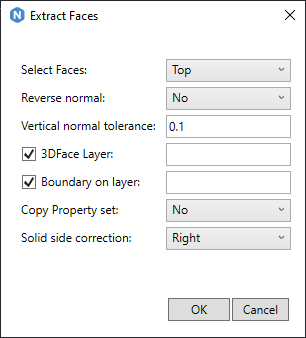

Extract Faces

Extracts Boundary as well as 3D Faces and can optionally not extract 3D Faces.

Property List

Added Structure.PipeLowerInvertElevation and Structure.PipeHighestTopElevation as valid information points.

Create Property set from CSV

Added the option to use a selected delimiter.

Project (BIM360 support)

Now places Support folder under _Shortcut in project, this change was made to make BIM360 support Naviate Naviate Support Folder updates.

Refresh Data Shortcut Project

Added to NVImportAssembly and NVVerifyAsembly. If Refresh Data Shortcut Project is ticked, it means that RefreshDataShortcutProject will be run before NVImportAssembly dialog opens, to force Civil to Refresh all DataShortcutProject including Assemblies-NV and Naviate Support e.g. in BIM360!

List Default Property

Added Structure.PipeLowerInvertElevation and Structure.PipeHighestTopElevation as valid information points.

Update Properties

Fixed an issue where the command didn’t update when using multiple regions.

Export Corridor

Fixed an issue where the subassembly name wasn’t added to the property set.
