Changes is available in version 2022.1.2

Draw Cable with Guide Grid improvement

You can now draw Wires using fixed angles also in a view with rotated scope box.

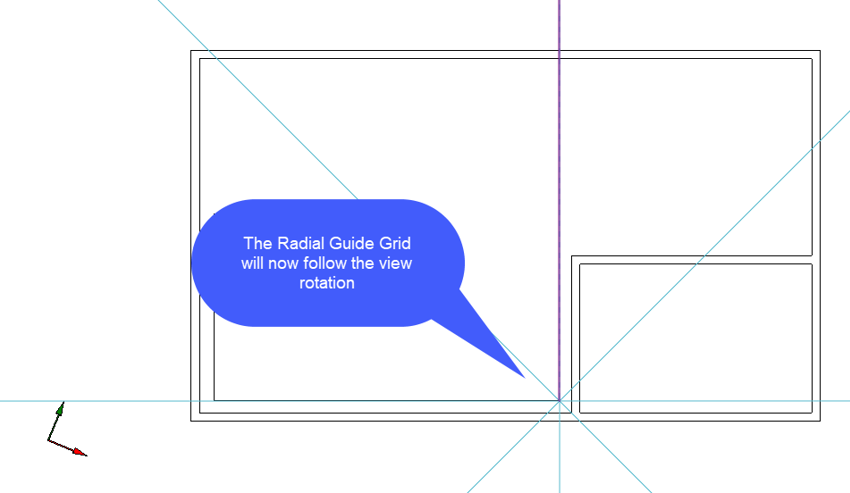

We have improved the Radial Guide grid feature to support drawing wires with fixed angles also in views with rotated scope boxes.

1-line Schedule Improvement

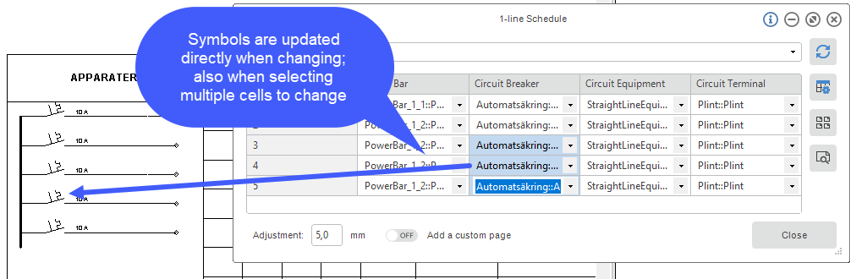

The 1-line schedule is updated directly when selecting a symbol in 1-line Schedule UI. No need to click on Refresh button to update complete 1-line schedule to see the result.

Bug fixes

We have fixed the following issues:

• Device Numbering: Fixed issue with assigning multiple circuits to a device with multiple connectors
• 1-Line Schedule: Fixed issue with wrong placement of symbols when changing to use <empty> symbol
• Draw Cable: Improved stability when entering negative angle for radial guide grid
• Circuit Numbering: Fixed so panels with unsupported Circuit Naming options are excluded and shown in report
