Changes is available in version 2022.1.3

1-Line Schedule

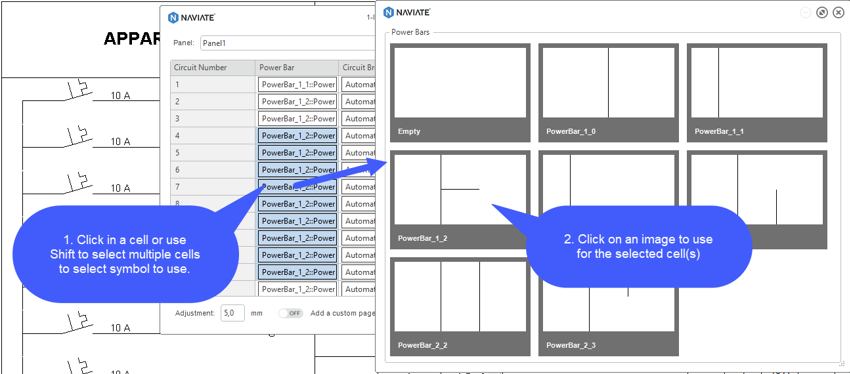

See images of the symbols when configuring equipment for the circuit.

You now see an image of the symbols when defining the 1-line schedule instead of selecting from a list of family names.

Note! This feature uses the type images on the families. The Naviate 1-line schedule families found in Cloud Browser have been updated to include Type Images. If you use old families in your project you can use Cloud Browser to replace your families or you can run the new Add Type Images tool to create Type Images for the families in your project.

Bug fixes

• Circuit Numbering: Fixed issue with copied elements
