Changes is available in version 2023.1.4

Door and Window Drawings

Improved creation of drawings and added possibility to update drawings and keep track of changes.

We have made the following improvements:

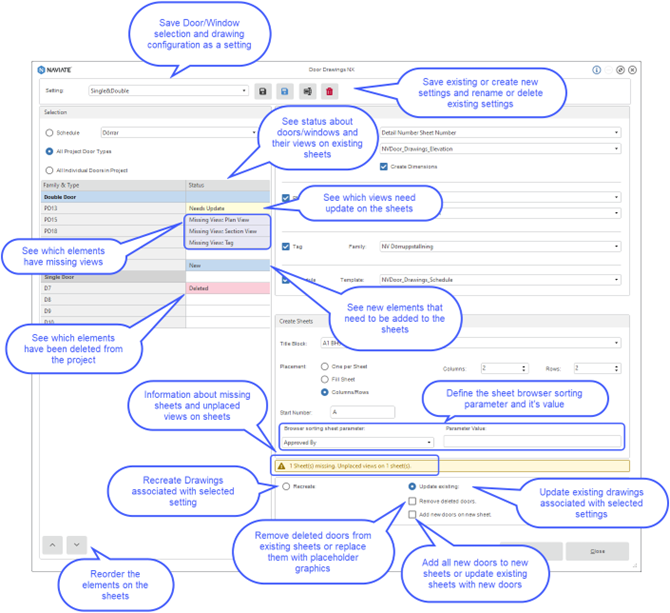

• Configure the scope of your drawings and create settings for various Drawing sets (Exterior, Interior, Steel, Single, Double doors/windows)
• Re-create, update, or delete existing views and sheets associated to the saved settings
• Keep track of new or deleted doors/windows
• Keep track of unwanted changes on views and sheets
• Define the look and feel of the door/window views
• Define the wanted sheet layout
• You can define or change the order of elements on the sheets through the user interface (UI)
• You can define the Browser sorting parameter and its value
• Make use of the responsive User interface – providing relevant info related to changes on the Drawings

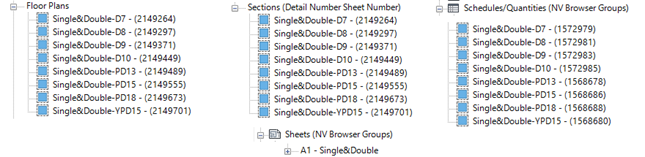

• View and Sheets created based on the selected settings will be include the name of the setting in their names, this way you will know which views and sheets are associated to a certain setting

Door and Window Swing and Count

Improved the UI/UX for more optimized workflow and better control.

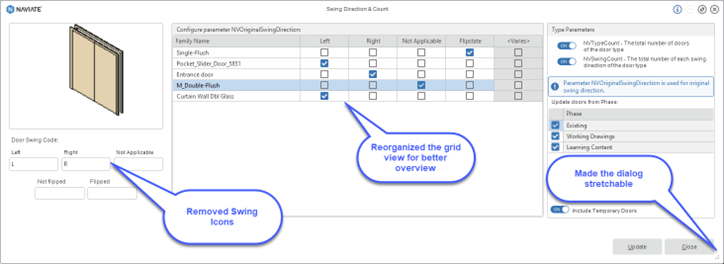

Improvements include:

• Generalizing the Swing Code UI by removing Swing Icons which are not compliant with global markets
• Reorganising and renaming grid view labels to provide a better overview and control
• Made the dialog stretchable enabling full view of the configurations

Room Drawings

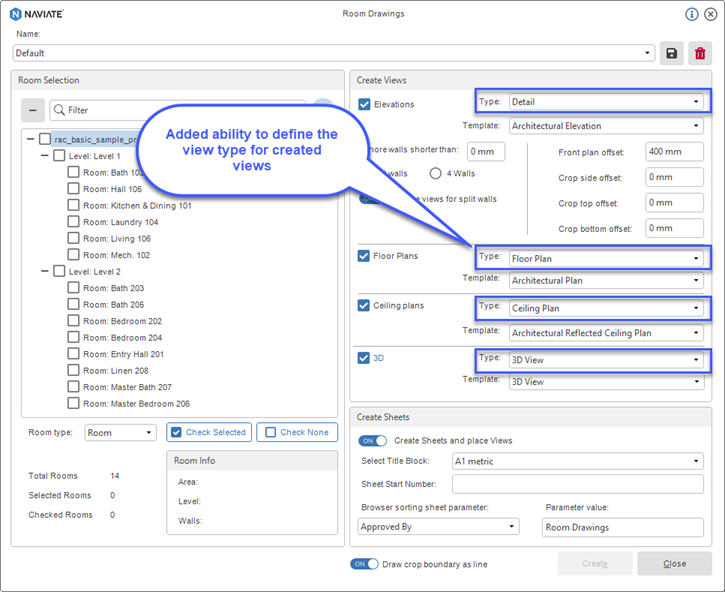

View Type for created Views

Provided possibility to define the View Type for created Views

You are now able to define the View type for Floor Plans, Ceiling Plans, and 3D Views, enabling you to configure the View type properties of your Room Drawing views and group and organize the views in your Project Browser.

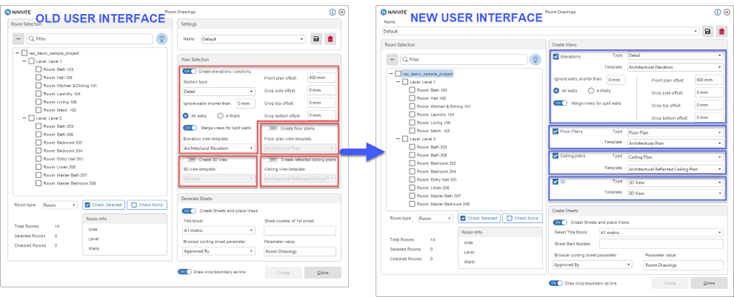

Structured workflow and experience

Improved the UI/UX for better control and a more streamlined Naviate look and feel

We have reorganised the UI to provide a more structured workflow and experience to you, as well to streamline the tool to have the same Naviate look and feel as other Drawing (View) creation tools in our products.

Reference Views from 3D Zones

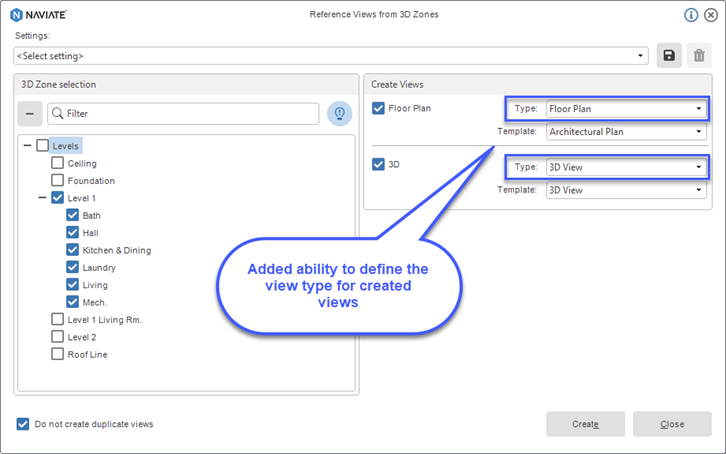

View Type for created Views

Provided possibility to define the View Type for created Views.

You are now able to define the View type for Floor Plans, and 3D Views, enabling you to configure the View type properties of your Room Drawing views and group and organize the views in your Project Browser.

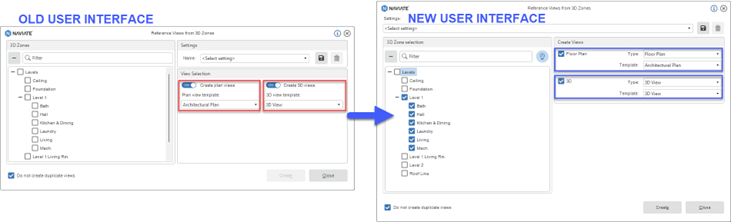

Structured workflow and experience

Improved the UI/UX for better control and a more streamlined Naviate look and feel.

We have reorganized the UI to provide a more structured workflow and experience to you, as well to streamline the tool to have the same Naviate look and feel as other Drawing(View) creation tools in our products.

Fixes

• Room Drawings: Fixed issue when creating elevation views with a Section View Type
