Beam

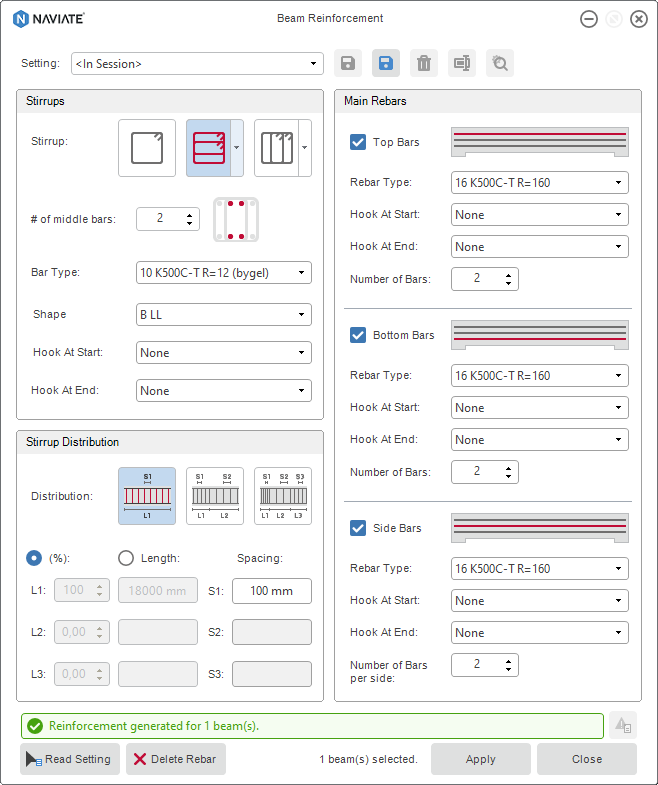

Beam generates reinforcement for rectangular cross-section of a beam, with a predefined setting.
Naviate Rebar Features
Naviate Rebar automates the process of generating reinforcement for Revit Construction structural elements like beams, columns and walls.
Highlighted features
Column

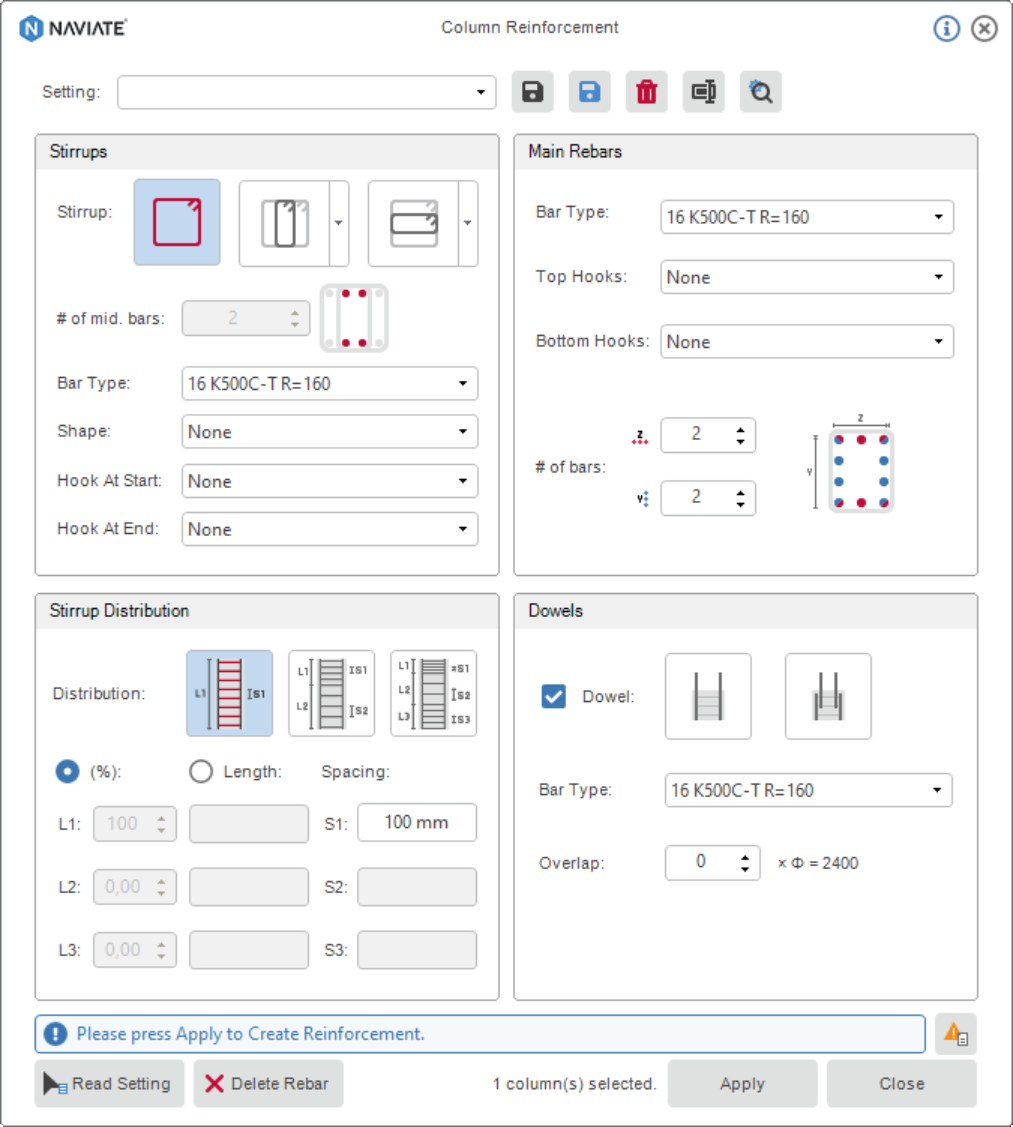

Column generates reinforcement for rectangular (chamfer) and round cross-sections of a column, with a predefined setting.
Wall

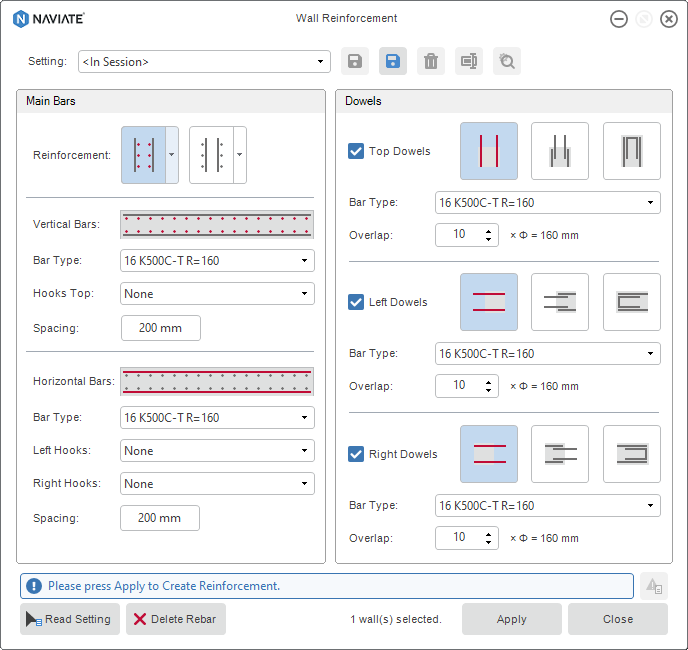

Wall generates reinforcement for rectangular profile of a wall, with a predefined setting.
Features
Beam
Beam generates reinforcement for rectangular cross-section of a beam, with a predefined setting.
Color Rebar
Use Color Rebar to efficiently visualize and manage rebar elements according to your project requirements. Choose any rebar parameter (type or instance) and parameter values will be shown with distinct colors assigned.
Column
Column generates reinforcement for rectangular (chamfer) and round cross-sections of a column, with a predefined setting.
Connection

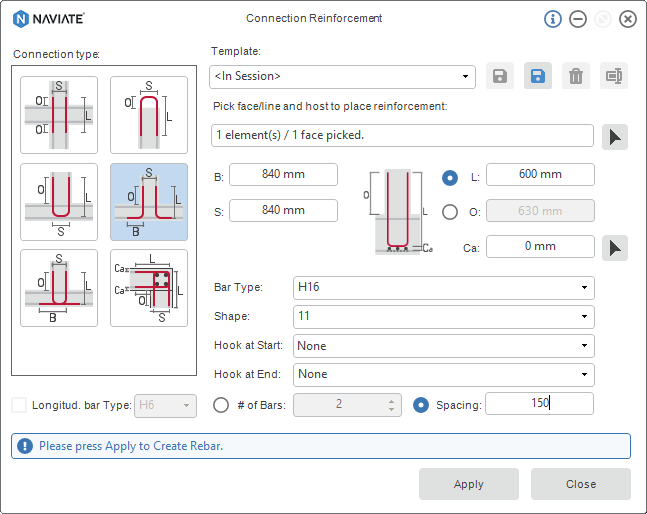

Creates reinforcement on the selected face of a single element or connecting face/line of two elements.
Delete Rebar
Lets you delete all reinforcement created with Naviate Rebar.
Divide Rebar
Divides straight reinforcement based on defined criteria, such as maximum length or a specific number of splits, overlapping (lapping) or non-overlapping bars.
Foundation
Creates reinforcement for rectangular foundations (single foundations, pile caps, wall foundations, slabs and floors) based on predefined settings.
Hide Obscured
Hide obscured rebar in any view.
Hide Rebar
Hide rebar in any view.
Isolate Rebar
Isolate rebar from other elements in the 3D view. Get a better understanding of isolated reinforcement element(s) in relation to other elements in the 3D view.
Opening
Places construction bars, main bars and diagonal bars around rectangular openings in wall, floor or slab.
Rebar Collision
Check for collisions between rebars in the structural elements. Use Rebar Collision tool to detect any clashes between reinforcement bars and ensure rebars are correctly placed and distributed in the structure.
Reset Isolate Rebar
Reset Isolate rebar from other elements in the 3D view. Get a better understanding of isolated reinforcement element(s) in relation to other elements in the 3D view.
Select Host
Allows you to select the host rebar that belongs to you.
Show Obscured
Show obscured rebar in any view.
Select Rebar
Allows you to select rebar that belongs to a host.
Show Rebar
Show rebar in any view.
Transfer Setting
Transfer named settings from all Naviate Rebar tools between projects. Transfer settings is a new feature that allows you to export and import settings from all Rebar tools across projects.
Trim to Opening
Trim/split all straight reinforcement bars to any rectangular or circular opening within a wall, floor or slab just by selecting the opening(s) in a view.
Wall
Wall generates reinforcement for rectangular profile of a wall, with a predefined setting.
Want to know more about the features?
For a detailed overview of each feature please visit the release news for Naviate rebar.
See how it looks like
Screenshots from Naviate Rebar
